I think that many people have a hate-love relationship with the design doctor. Of course, you never want to see that red cross at the top of your screen. But stuff breaks and you need to know about it and solve it. This is where the design doctor should shine. It should help you identify all problems and help you to solve them.
If you have a look at the "Inventor idea forum" you will find a lot of improvement ideas. (I found 39 ideas.) Lots of those ideas come down to the same problems. But these 2 I want to highlight:
- Clicking through the problem tree to see the actual problem is annoying. I just want to see the problems directly!
- Finding the feature, occurrence or ... can be a pain. I want to be able to see the problem in the model browser.
Therefore my thoughts would be to create my own "Design Doctor" based on the original. But Brian Ekins (one of the designers of the Inventor API) wrote:
"There were plans at one point to expose the Design Doctor through the API but it never happened. However, you can still get some failure or error information by interrogating the model."
So I needed to get the health information of objects in another way. lucky for me it seems that many objects in Inventor API have the property "HealthStatus". In the help, I found more than 400 objects with this property. I guess their use is quite self-explanatory. The problem is finding and feeding them, in an efficient way, to some function that checks the property and saves problems to a list. I managed to do that but I'm don't think I got all objects. I guess that I managed to get around 80% of the objects.

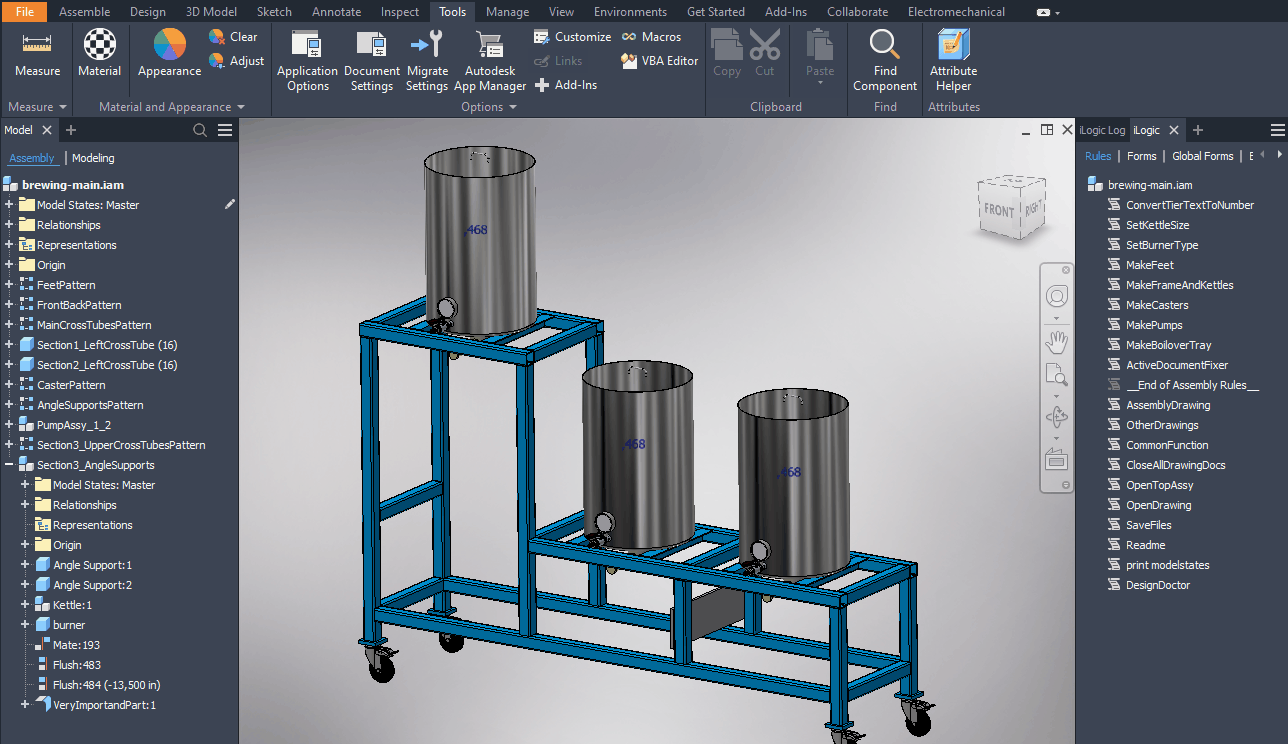

The next problem is creating a window. As you might know, there is an iLogic function to create listed windows. In this rule, I used that function to create a window that shows you a list of all problems. If you select 1 of them and click on "OK" the document containing the problem will be opened and the feature, occurrence or ... will be selected.
The whole look is a bit rough. I don't like how the window looks like. Also, the error text could be much clearer. If this would have been an addon I would definitely improve this. But for now, I will leave this up to you. However, I know of some recourse that might help you. Creating a new window from scratch is a nice challenge (but will make this code probably twice as long). more information you can find on this page "Create a Windows Form, from one iLogic Rule". If you want to change the text in the list you just need to change the "HealtProblem.ToString()" (This is the last function of the rule.)
Public Class ThisRule
Public Sub Main()
Dim doc As Document = ThisDoc.Document
Dim problemFinder As New ProblemFinder(doc)
Dim problems As List(Of HealtProblem) = problemFinder.Problems
If (problems.Count = 0) Then
MsgBox("No problems found!")
return
End If
Dim selectedProblem As HealtProblem = InputListBox(
"Select the problem that you want to solve today.",
problems, problems.Item(1),
Title := "Design Doctor",
ListName := "Problems",
Width := 600,
Height := 400)
If selectedProblem Is Nothing Then Return
ThisApplication.Documents.Open(selectedProblem.Document.FullFileName)
HiglightInBrowser(selectedProblem)
End Sub
Public Sub HiglightInBrowser(problem As HealtProblem)
Try
Dim oNativeBrowserNodeDef As NativeBrowserNodeDefinition = problem.Document.BrowserPanes.
GetNativeBrowserNodeDefinition(problem.ProblemObject)
Dim oTopBrowserNode As BrowserNode = problem.Document.BrowserPanes.ActivePane.TopNode
Dim oWorkPlaneNode As BrowserNode = oTopBrowserNode.AllReferencedNodes(oNativeBrowserNodeDef).Item(1)
oWorkPlaneNode.Expanded = True
oWorkPlaneNode.Expanded = False
problem.Document.SelectSet.Clear()
problem.Document.SelectSet.Select(problem.ProblemObject)
Catch ex As Exception
Dim msg = String.Format("Could not select problem node in document: " & problem.Document.DisplayName)
End Try
End Sub
End Class
Public Class ProblemFinder
Public Property Problems As New List(Of HealtProblem)
Sub New(doc As Document)
If (doc.DocumentType = DocumentTypeEnum.kPartDocumentObject) Then
FindPartProblems(doc)
ElseIf (doc.DocumentType = DocumentTypeEnum.kAssemblyDocumentObject) Then
FindAssemblyProblems(doc)
End If
Dim partDocs = doc.AllReferencedDocuments.Cast(Of Document).
Where(Function(d) d.DocumentType = DocumentTypeEnum.kPartDocumentObject).ToList()
For Each partDoc As PartDocument In partDocs
FindPartProblems(partDoc)
Next
Dim assemblyDocs = doc.AllReferencedDocuments.Cast(Of Document).
Where(Function(d) d.DocumentType = DocumentTypeEnum.kAssemblyDocumentObject).ToList()
For Each assemblyDoc As AssemblyDocument In assemblyDocs
FindAssemblyProblems(assemblyDoc)
Next
End Sub
Public Sub FindAssemblyProblems(doc As AssemblyDocument)
FindProblemsInList(doc, doc.ComponentDefinition.Constraints.Cast(Of AssemblyConstraint))
FindProblemsInList(doc, doc.ComponentDefinition.Sketches.Cast(Of PlanarSketch))
FindProblemsInList(doc, doc.ComponentDefinition.OccurrencePatterns.Cast(Of OccurrencePattern))
FindProblemsInList(doc, doc.ComponentDefinition.WorkPlanes.Cast(Of WorkPlane))
FindProblemsInList(doc, doc.ComponentDefinition.Parameters.Cast(Of Parameter))
End Sub
Public Sub FindPartProblems(doc As PartDocument)
FindProblemsInList(doc, doc.ComponentDefinition.Features.Cast(Of PartFeature))
FindProblemsInList(doc, doc.ComponentDefinition.Sketches.Cast(Of PlanarSketch))
FindProblemsInList(doc, doc.ComponentDefinition.WorkPlanes.Cast(Of WorkPlane))
FindProblemsInList(doc, doc.ComponentDefinition.Parameters.Cast(Of Parameter))
FindProblemsInList(doc, doc.ComponentDefinition.ModelAnnotations.Cast(Of ModelAnnotation))
End Sub
Public Sub FindProblemsInList(doc As Document, list As IEnumerable(Of Object))
Try
For Each obj As Object In list
If (obj.HealthStatus = HealthStatusEnum.kCannotComputeHealth Or
obj.HealthStatus = HealthStatusEnum.kDeletedHealth Or
obj.HealthStatus = HealthStatusEnum.kDriverLostHealth Or
obj.HealthStatus = HealthStatusEnum.kInconsistentHealth Or
obj.HealthStatus = HealthStatusEnum.kInErrorHealth Or
obj.HealthStatus = HealthStatusEnum.kInvalidLimitsHealth Or
obj.HealthStatus = HealthStatusEnum.kJointDOFLockedHealth Or
obj.HealthStatus = HealthStatusEnum.kNewlyAddedHealth Or
obj.HealthStatus = HealthStatusEnum.kOutOfDateHealth Or
obj.HealthStatus = HealthStatusEnum.kRedundantHealth Or
obj.HealthStatus = HealthStatusEnum.kUnknownHealth) Then
Problems.Add(New HealtProblem(doc, obj))
End If
Next
Catch ex As Exception
MsgBox("Problems while parisng problems in document: " & doc.DisplayName)
End Try
End Sub
End Class
' Copyright 2022
'
' This code was written by Jelte de Jong, and published on www.hjalte.nl
'
' Permission Is hereby granted, free of charge, to any person obtaining a copy of this
' software And associated documentation files (the "Software"), to deal in the Software
' without restriction, including without limitation the rights to use, copy, modify, merge,
' publish, distribute, sublicense, And/Or sell copies of the Software, And to permit persons
' to whom the Software Is furnished to do so, subject to the following conditions:
'
' The above copyright notice And this permission notice shall be included In all copies Or
' substantial portions Of the Software.
'
' THE SOFTWARE Is PROVIDED "AS IS", WITHOUT WARRANTY Of ANY KIND, EXPRESS Or IMPLIED,
' INCLUDING BUT Not LIMITED To THE WARRANTIES Of MERCHANTABILITY, FITNESS For A PARTICULAR
' PURPOSE And NONINFRINGEMENT. In NO Event SHALL THE AUTHORS Or COPYRIGHT HOLDERS BE LIABLE
' For ANY CLAIM, DAMAGES Or OTHER LIABILITY, WHETHER In AN ACTION Of CONTRACT, TORT Or
' OTHERWISE, ARISING FROM, OUT Of Or In CONNECTION With THE SOFTWARE Or THE USE Or OTHER
' DEALINGS In THE SOFTWARE.
Public Class HealtProblem
Public Sub New(doc As Document, problemObject As Object)
Me.Document = doc
Me.ProblemObject = problemObject
End Sub
Public Property Document As Document
Public Property ProblemObject As Object
Public Overrides Function ToString() As String
Return String.Format("{0}: {1} ({2})",
Document.DisplayName, ProblemObject.Name,
CType(ProblemObject.HealthStatus, HealthStatusEnum).ToString())
End Function
End ClassEdit:
On LinkedIn I did get the following comment from Felix Rodermund:
"Sad that the HealthEnum does not at least have a common name that can be returned with TypeName like e. g. partfeatures in the ObjectTypeEnum. On the other hand the HealthStatusEnum is not too big, just looked it up. ... Okay here we go, just wrote it. Wasn't as much pain as I suspected."
And in my mail, I found the following class. You can use it to replace the HealthProblem class in my rule. This replacement class will give you a better description text than my class.
Public Class HealtProblem
Public Sub New(doc As Document, problemObject As Object)
Me.Document = doc
Me.ProblemObject = problemObject
End Sub
Public Property Document As Document
Public Property ProblemObject As Object
Public Overrides Function ToString() As String
' Change this function if you want to see other texts in you list
Dim ErrorMsg As String = ""
Select Case ProblemObject.HealthStatus
Case HealthStatusEnum.kBeyondStopNodeHealth
ErrorMsg = "Object is beyond stop node in the browser."
Case HealthStatusEnum.kCannotComputeHealth
ErrorMsg = "Object cannot be evaluated."
Case HealthStatusEnum.kDeletedHealth
ErrorMsg = "Object has been destroyed. You may be holding on to an empty 'shell' of the Object."
Case HealthStatusEnum.kDriverLostHealth
ErrorMsg = "Object is driven by data from other Object(s), and one or more of them have been disconnected."
Case HealthStatusEnum.kInconsistentHealth
ErrorMsg = "Object is inconsistent with another object."
Case HealthStatusEnum.kInErrorHealth
ErrorMsg = "Object's internal state is in error."
Case HealthStatusEnum.kInvalidLimitsHealth
ErrorMsg = "Object has bad limits. e.g. max < min."
Case HealthStatusEnum.kJointDOFLockedHealth
ErrorMsg = "Object is locked Joint."
Case HealthStatusEnum.kNewlyAddedHealth
ErrorMsg = "Object is newly added or unsuppressed and has not been solved yet."
Case HealthStatusEnum.kOutOfDateHealth
ErrorMsg = "Object needs to be recomputed with respect to its 'driver(s)'."
Case HealthStatusEnum.kRedundantHealth
ErrorMsg = "Object's solution is redundant with another object."
Case HealthStatusEnum.kSuppressedHealth
ErrorMsg = "Object has been suppressed."
Case HealthStatusEnum.kUnknownHealth
ErrorMsg = "Object's status is not known."
Case HealthStatusEnum.kUpToDateHealth
ErrorMsg = "Object is up to date."
End Select
Return String.Format("{0} ==> {1}: '{2}' ({3})",
Document.DisplayName, ProblemObject.Name, ErrorMsg,
System.Enum.GetName(GetType(HealthStatusEnum), ProblemObject.HealthStatus))
End Function
End Class
